Talsa FP30t Automatic Hydraulic Piston Filler/Stuffer

***Main image shown is Model FP30s (includes twiter/linker+casing managment)

The Talsa FP30t is an advanced automatic hydraulic piston filler/stuffer designed for processors who need precise filling, accurate portioning, and integrated automatic twisting/linking in one compact, digital machine. Within the FP30 platform, it is important to distinguish the three versions clearly: the FP30e is for filling/stuffing and portioning, the FP30s includes an automatic motorized casing holder, and the FP30t is the version equipped with an automatic digital twister/linker that rotates the nozzle or horn between each portion. Talsa states that the number of turns is adjustable from 1 to 15, making the FP30t the configuration specifically built for processors who want automated linking capability built directly into the machine.

The FP30t combines the functions of a filler/stuffer, portioner, and automatic digital twister/linker into one efficient production solution. With a 30-liter barrel capacity, approximately 55 lb meat capacity, and all-digital control architecture, the FP30t is well suited for sausage production and other portioned applications where accuracy, consistency, and automated twisting are important.

Why Choose the Talsa FP30t?

The Talsa FP30t is an excellent fit for processors who want more automation than a standard portioning machine but do not specifically need the motorized casing holder of the FP30s. The FP30t’s defining feature is its automatic digital twister/linker, which rotates the nozzle/horn between portions to create consistent links. Because the number of turns is adjustable from 1 to 15 turns, operators have more control over product presentation and twist consistency across different sausage styles and production requirements.

Like the rest of the FP30 series, the FP30t is built to work with synthetic, collagen, and natural casings, giving processors flexibility across a wide range of products. It also supports single or continuous operation, along with a programmable number of portions for automatic stop, helping operators run repeatable batches more efficiently.

Precision Portioning with Automatic Twisting

The FP30t is designed to deliver both accurate portioning and reliable twisting performance. It operates in three working modes: straight filling/stuffing, portioning, and twister/linker mode. Talsa lists a portion range from 5 g up to 25 kg, with stated portion precision of ±1 g and weight calibration adjustment beginning above 0.1 g. This gives the machine the flexibility to handle small, highly controlled portions as well as larger fills, while maintaining excellent repeatability.

Talsa also highlights an intuitive calibrating system that helps operators achieve exact weights based on product density, along with counters for batch/total number and weight. A programmable fill break is included as well, giving the operator more control over how the product is filled and linked during production.

Production Speed and Efficiency

The Talsa FP30t is built for fast, efficient production. Talsa states that the FP30 platform can produce up to 350 portions per minute, depending on portion size and configuration, with published examples including up to 300 portions/minute at 25 g, 250 portions/minute at 50 g, 200 portions/minute at 100 g, and 150 portions/minute at 200 g. These output ranges make the FP30t a strong option for processors who want automated linking capability without sacrificing speed or portion accuracy.

Digital Controls and Advanced Software

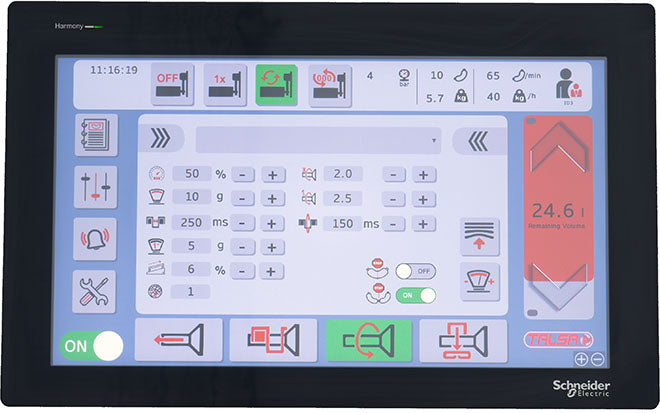

The FP30t is an all-digital machine using advanced IO-Link internal communications for precise and reliable control. It features a large 15-inch Schneider Electric touchscreen that displays information simultaneously and in large format for easier operation. Talsa notes that the control system includes extensive information on controls, alarms, errors, and diagnostics, along with practical software that is intuitive and easy to use. The machine also supports interactive recipes that can be stored and executed directly from the screen, helping improve setup consistency from batch to batch.

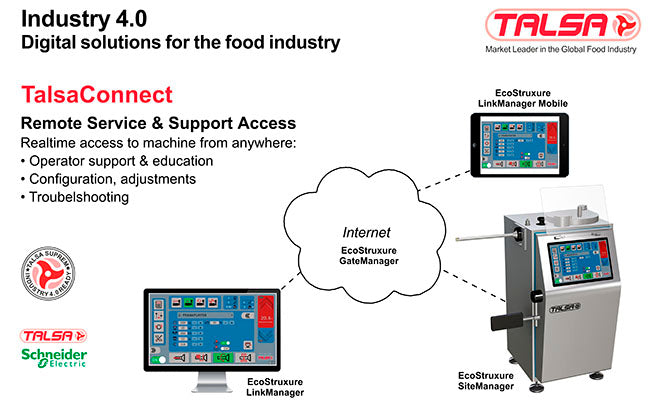

For processors interested in connectivity and long-term support, Talsa also includes Industry 4.0 digital solutions for maintenance, process integration, and custom solutions. The FP30t offers remote service and support access over a secure internet connection, which can help simplify troubleshooting and improve service response.

Hygienic Stainless Construction and Reliable Components

The Talsa FP30t is built for daily food production with a fully stainless construction, including internal and external surfaces in AISI 304 stainless steel. Talsa highlights polished surfaces without corners, CE-radius design to facilitate cleaning, a closed machine bottom, double-sealed waterproof access panels, and adjustable stainless machine feet that are non-slip and vibration absorbing. These design features support hygiene, durability, and easier cleanup in demanding production environments.

Internally, the FP30t uses quality components from recognized suppliers such as Hydac Germany, Schneider Electric, and Balluff Germany. The machine is powered by a 2.2 kW / 3.0 HP motor, uses high hydraulic pressure for dense or cold products, and includes a temperature-controlled oil cooling system for reliable performance.

Talsa FP30t Features

• Automatic hydraulic piston filler/stuffer
• FP30t version includes automatic digital twister/linker

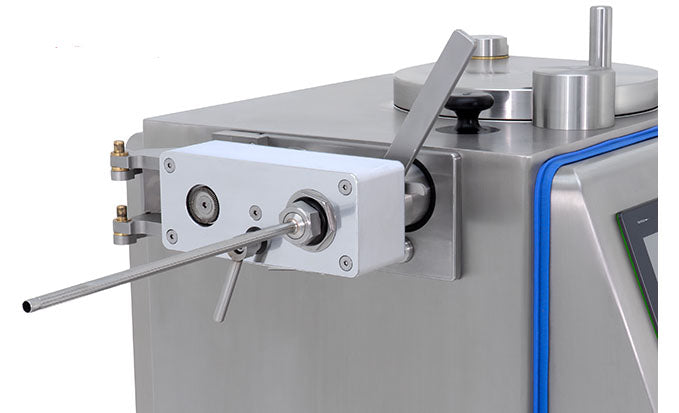

• Twister/linker rotates nozzle/horn between each portion
• Adjustable from 1 to 15 turns
• All-in-one functionality: filler/stuffer, portioner, twister/linker
• Three working modes: straight filling/stuffing, portioning, and twister/linker
• Handles synthetic, collagen, and natural casings
• Single or continuous operation
• Programmable number of portions with automatic stop
• Programmable fill break
• Portion accuracy of ±1 g
• Weight calibration adjustment starting above 0.1 g

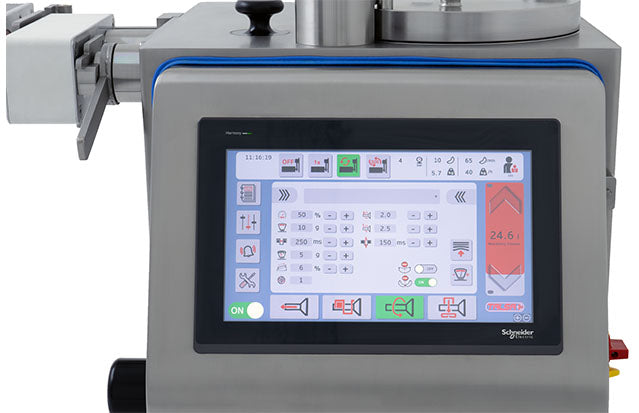

• Large 15-inch touchscreen control panel
• Interactive recipe storage and execution on-screen
• IO-Link internal communications for precise digital control
• Industry 4.0 and secure remote support capability
• Full AISI 304 stainless steel construction, inside and out

Talsa FP30t Specifications

Model: Talsa FP30t
Machine Type: Automatic hydraulic piston filler/stuffer with automatic digital twister/linker

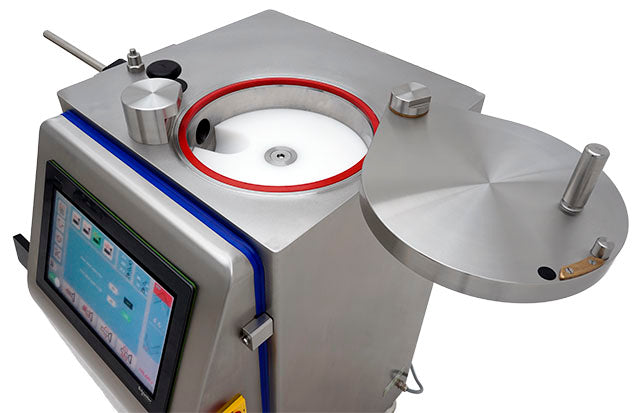

Barrel Capacity: 30 liters / 8 gallons
Meat Capacity: Approx. 25 kg / 55 lbs
Power: 2.2 kW / 3.0 HP
Max Consumption: 7.5 A at 400/380 V; 12.1 A at 230/220 V
Net Weight: Approx. 374 kg / 825 lbs
Gross Weight: Approx. 400 kg / 880 lbs
Packaging Dimensions: 92 x 98 x 152 cm / 39" x 36" x 60"
Portion Range: 5 g to 25 kg / 0.2 oz to 55 lbs
Portion Precision: ±1 g
Weight Calibration: > 0.1 g
Included Nozzles/Horns: 14, 20, 25, 30, and 43 mm external diameter

FP30t Dimensions

• A: 108 cm (42.5")
• B: 124 cm (48.8")
• C: 89 cm (35.0")
• D: 80 cm (31.5")
• E: 151 cm (59.5")
• F: 119 cm (46.8")

Optional Equipment

The Talsa FP30t can also be equipped with optional accessories to support specific applications and production requirements, including:

• Curved nozzle/horn for filling cans, jars, or other containers
• Preparation for connection to an external clipping machine
• 4 stainless steel swivel casters with brake

Important Model Clarification: FP30t vs. FP30s vs. FP30e

When evaluating the FP30 line, it is important to keep the three configurations separate:

• FP30e = filling/stuffing and portioning only
• FP30s = automatic motorized casing holder for effortless portioning and twisting
• FP30t = automatic digital twister/linker that rotates the nozzle/horn between each portion, adjustable from 1 to 15 turns

That distinction matters because the FP30t is the version specifically intended for processors who want integrated automatic twisting/linking, while the FP30s is centered around the benefits of the motorized casing holder.
