Talsa FP30s Automatic Hydraulic Piston Filler/Stuffer

The Talsa FP30s is an advanced automatic hydraulic piston filler/stuffer designed for processors who need accurate portioning, efficient twisting, and smoother casing handling in one compact, all-digital machine. This model is part of Talsa’s FP30 platform, but it is important to distinguish it from the other configurations: the FP30e is for filling/stuffing and portioning, while the FP30t is the version with an automatic digital twister/linker. The FP30s is the configuration equipped with an automatic motorized casing holder, giving operators effortless portioning and twisting while helping ensure precise portions and twist points with maximum efficiency.

Built for sausage production and other portioned filled products, the FP30s combines the functions of a filler/stuffer, portioner, twister/linker, and automatic motorized casing holder into one machine. With a 30-liter barrel capacity, approximately 55 lb meat capacity, and digital controls designed for high precision, the FP30s is a strong solution for processors looking to improve consistency, production speed, and operator ease of use.

Why Choose the Talsa FP30s?

The Talsa FP30s is built for processors who want more than basic stuffing capability. Its automatic motorized casing holder helps reduce manual effort during production while supporting more consistent portioning and twisting. That makes it an excellent option for operations producing sausages or similar products where speed, accuracy, and uniform presentation matter. Talsa also notes that the machine is capable of handling synthetic, collagen, and natural casings, giving processors flexibility across a wide range of applications.

The machine operates in three working modes: straight filling/stuffing, portioning, and twister/linker mode. It can run in single or continuous operation, and it includes a programmable number of portions with automatic stop as well as a programmable fill break. This gives the operator greater control over the final product and helps simplify repeatable production runs.

Precision Portioning and High Output

One of the biggest advantages of the Talsa FP30s is its ability to deliver both speed and precision. Portion sizes range from 5 g up to 25 kg, with stated precision of ±1 g and weight calibration adjustment beginning above 0.1 g. Talsa also highlights an intuitive calibrating system that helps the user produce exact-weight portions based on product density, along with counters for batch and total number and weight.

For processors focused on throughput, the FP30s offers excellent production speed. Published output figures show capacity up to 350 portions per minute when using the automatic motorized casing holder and accelerator mode with collagen casing. Talsa also lists production examples of up to 300 portions/minute at 25 g, 250 portions/minute at 50 g, 200 portions/minute at 100 g, and 150 portions/minute at 200 g.

Advanced Digital Controls and Industry 4.0 Features

The FP30s is an all-digital machine using advanced IO-Link internal communications for precise portioning. It features a large 15-inch Schneider Electric touchscreen control panel that displays production information, controls, alarms, diagnostics, and recipes in a practical, easy-to-read layout. Talsa states that the machine includes interactive recipes that can be stored and executed directly on the screen, as well as software with numerous options designed to be intuitive and easy to use.

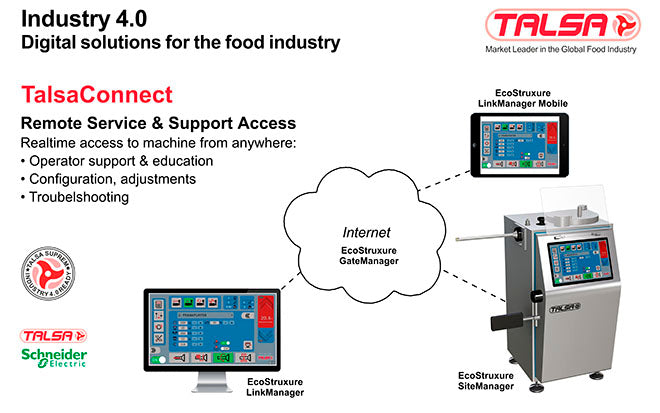

For processors interested in smarter production and service support, the FP30s also supports Industry 4.0 digital solutions for maintenance, process integration, and custom solutions. Talsa further notes that the machine offers remote service and support access over a secure internet connection, which can be useful for troubleshooting, support, and production optimization.

Built for Hygiene, Durability, and Daily Production

The Talsa FP30s is constructed with a fully stainless design, including the internal and external frame, hardware, and accessible components in AISI 304 stainless steel. Talsa also highlights polished surfaces without corners, a closed machine bottom, double-sealed waterproof access panels, and adjustable stainless machine feet that are non-slip and vibration absorbing. These details help support easier cleaning and compliance with hygiene standards in food production environments.

The hydraulic, electrical, and electronic systems are built with well-known components, including Hydac Germany, Schneider Electric, and Balluff Germany IO-Link components. The machine uses a 3.0 HP motor, high hydraulic pressure for dense or cold products, and a temperature-controlled oil cooling system to support reliable operation.

Talsa FP30s Features

• Automatic hydraulic piston filler/stuffer

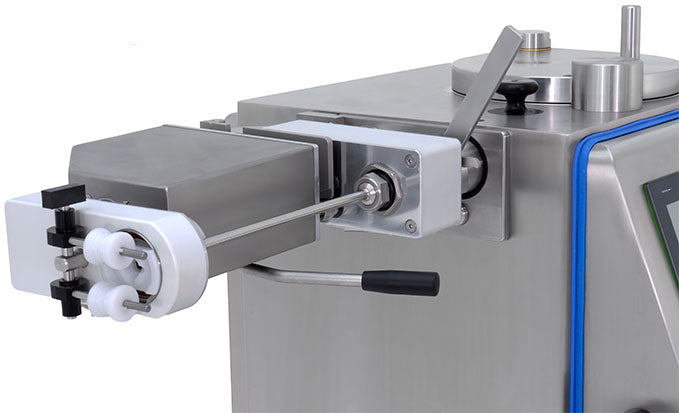

• FP30s version includes automatic motorized casing holder
• All-in-one functionality: filler/stuffer, portioner, twister/linker
• Three working modes: straight filling/stuffing, portioning, and twister/linker
• Handles synthetic, collagen, and natural casings
• Single or continuous operation
• Programmable number of portions with automatic stop
• Programmable fill break
• Portion accuracy of ±1 g
• Weight calibration adjustment starting above 0.1 g
• Up to 350 portions per minute in stated conditions
• Large 15-inch touchscreen control panel
• Interactive recipe storage and execution on-screen
• IO-Link internal communications for precise digital control
• Industry 4.0 and secure remote support capability
• Full AISI 304 stainless steel construction, inside and out

Talsa FP30s Specifications

Model: Talsa FP30s
Machine Type: Automatic hydraulic piston filler/stuffer with automatic motorized casing holder
Barrel Capacity: 30 liters / 8 gallons
Meat Capacity: Approx. 25 kg / 55 lbs
Power: 2.2 kW / 3.0 HP
Max Consumption: 7.5 A at 400/380 V; 12.1 A at 230/220 V
Net Weight: Approx. 374 kg / 825 lbs
Gross Weight: Approx. 400 kg / 880 lbs
Packaging Dimensions: 92 x 98 x 152 cm / 39" x 36" x 60"
Portion Range: 5 g to 25 kg / 0.2 oz to 55 lbs
Portion Precision: ±1 g
Weight Calibration: > 0.1 g
Included Nozzles/Horns: 14, 20, 25, 30, and 43 mm external diameter

FP30s Dimensions

• A: 108 cm (42.5")
• B: 124 cm (48.8")
• C: 89 cm (35.0")
• D: 80 cm (31.5")
• E: 156 cm (61.5")
• F: 124 cm (48.8")

Optional Equipment

The Talsa FP30s can also be configured with optional accessories to support different applications and production needs, including:

• Curved nozzle/horn for filling cans, jars, or other containers
• Preparation for connection to an external clipping machine
• 4 stainless steel swivel casters with brake

Important Model Clarification: FP30s vs. FP30e vs. FP30t

When evaluating the FP30 platform, it is important not to mix the three versions:

• FP30e = filling/stuffing and portioning only
• FP30t = automatic digital twister/linker that rotates the nozzle/horn between portions, adjustable from 1 to 15 turns
• FP30s = automatic motorized casing holder for effortless portioning and twisting, ensuring precise portions and twist points with maximum efficiency

That distinction is important because the FP30s is the version specifically focused on combining precise filling and portioning with the added performance benefit of the automatic motorized casing holder.

If you are looking for a compact, high-precision automatic filler/stuffer that can help improve portion accuracy, twisting consistency, and overall production efficiency, the Talsa FP30s is a strong solution for sausage and portioned product applications. Contact RAM Manufacturing Equipment to learn more about the Talsa FP30s, request pricing, or discuss whether this model is the right fit for your production goals.
