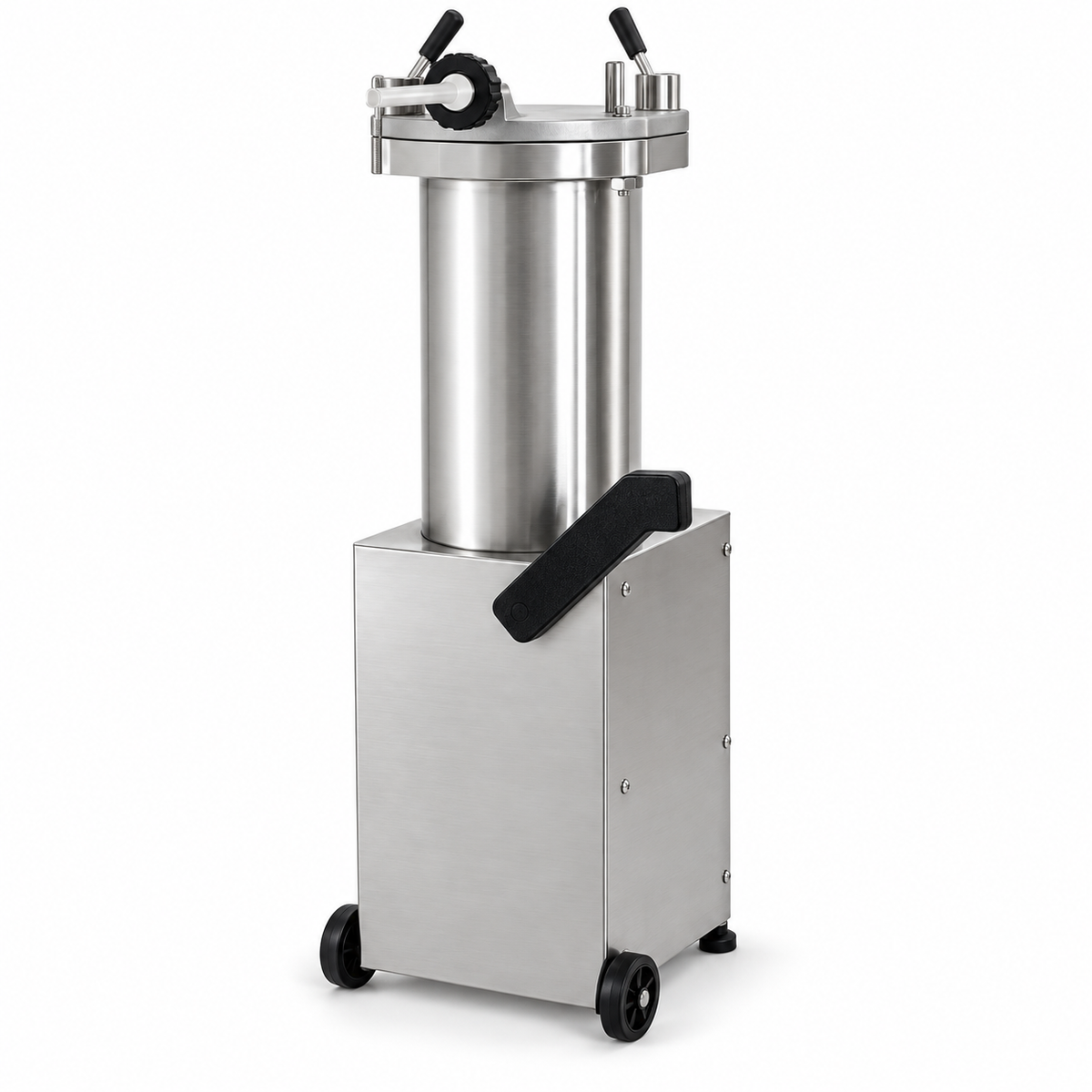

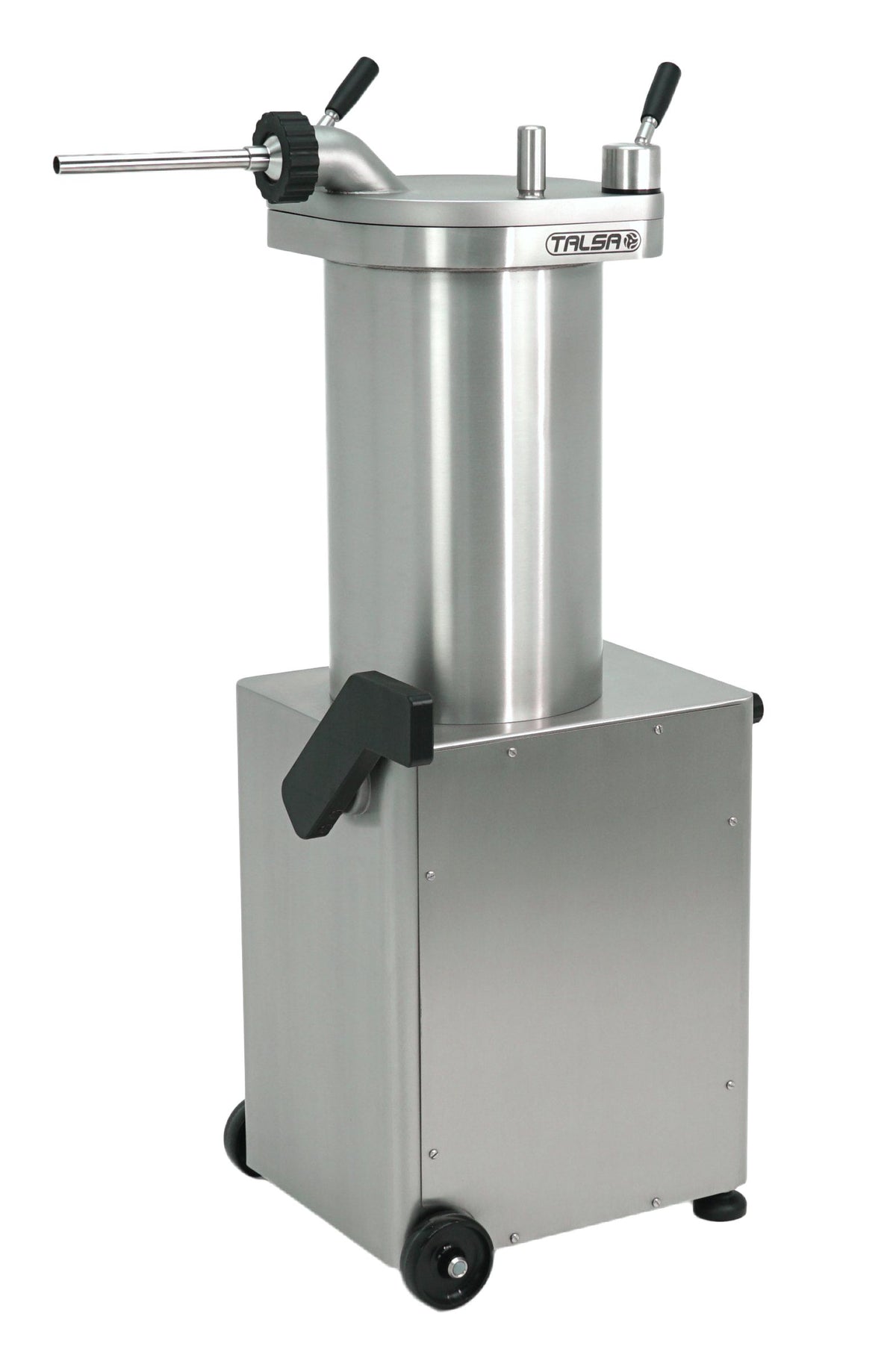

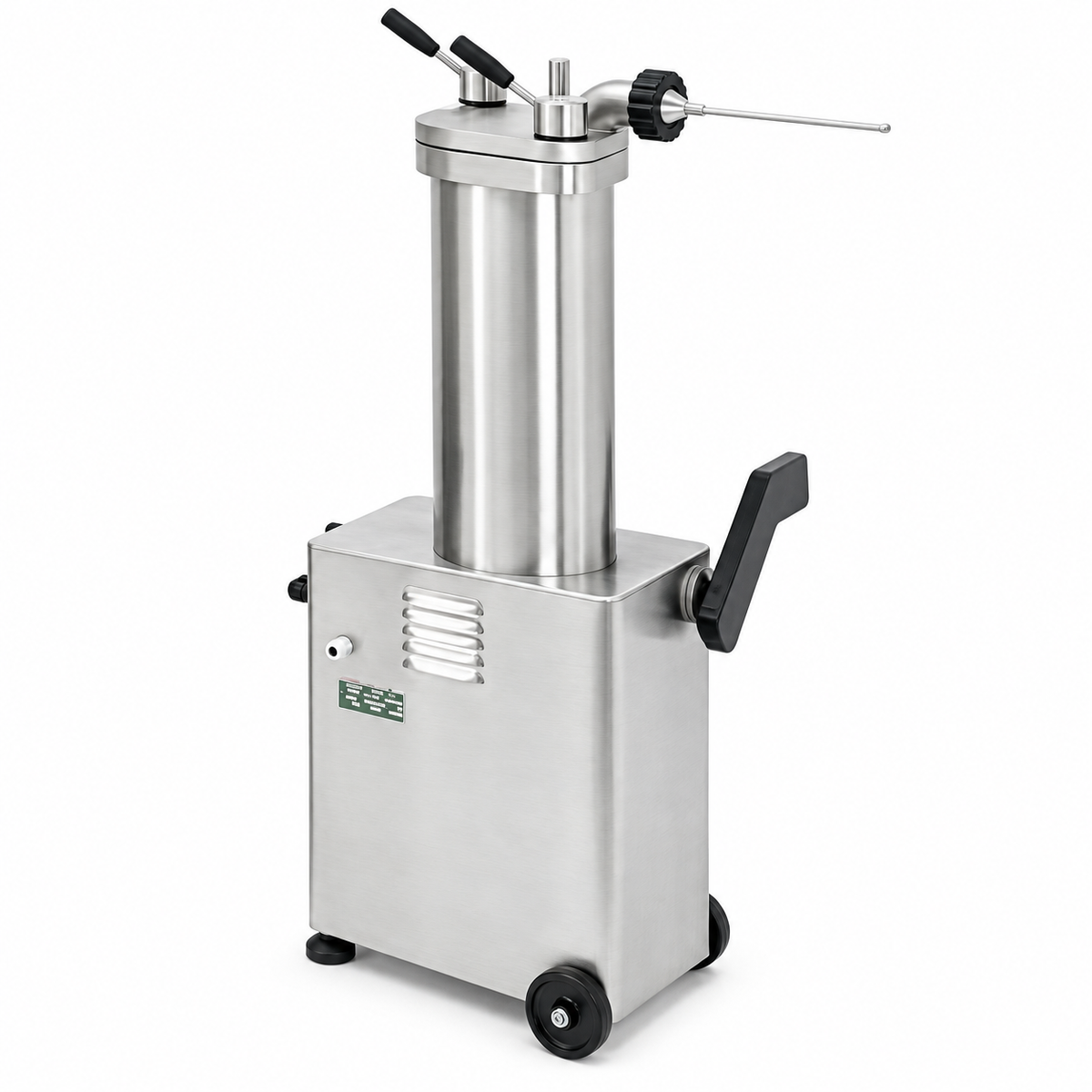

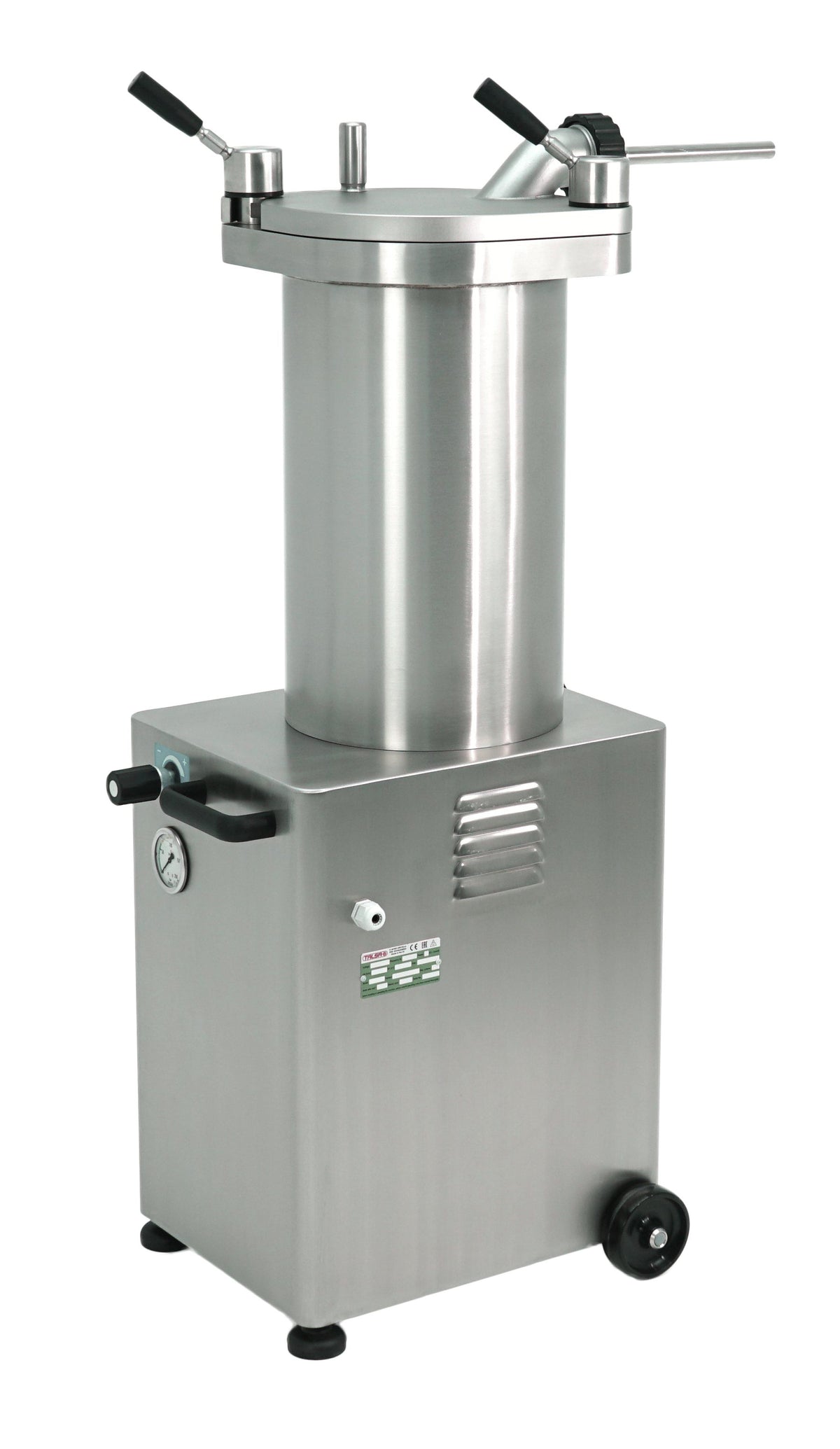

Talsa F14s Hydraulic Sausage Stuffer / Piston Filler

The Talsa F14s Hydraulic Piston Filler / Sausage Stuffer is a compact, heavy-duty commercial meat stuffer designed for sausage processors, butcher shops, meat markets, restaurants and food production facilities. With an approximately 26 lb. (11 kg) meat capacity and 14.2 L / 3.7-gallon barrel, the F14s combines powerful hydraulic operation with precise speed and pressure control for consistent filling of sausage, meat products and other dense or cold mixtures.

Built with robust stainless steel construction, the Talsa F14s features hands-free knee-operated start/stop control, automatic piston decompression for immediate product shutoff, adjustable filling speed and a high-pressure hydraulic system. Its sanitary design allows quick disassembly for easy cleaning and maintenance.

Features

• Heavy-duty hydraulic piston sausage stuffer

• Robust stainless steel construction

• Approx. 26 lb. / 11 kg meat capacity

• 14.2 L / 3.7-gallon barrel capacity

• Hands-free knee-operated automatic start/stop

• Adjustable filling speed

• Pressure gauge

• High-pressure hydraulic system for dense and cold mixtures

• Automatic piston decompression for immediate product flow stop

• Stainless steel cylinder ram

• Solid stainless steel lid and piston

• Round, precision-machined barrel for consistent sealing

• Easily removable piston for cleaning

• Removable lid

• Adjustable lid locking nuts with handles

• Independent hydraulic oil reservoir

• Thermally protected motor

• Automatic knee-lever lock until piston reaches its lower position

• Stainless steel barrel bottom with water drain

• Two wheels and transport handle for easy movement

• Adjustable anti-vibration feet

• Designed for easy disassembly, cleaning and maintenance

Specifications

Manufacturer: Talsa
Model: F14s
Machine Type: Hydraulic Piston Filler / Sausage Stuffer
Condition: New
Barrel Capacity: 14.2 L / 3.7 gal.
Approx. Meat Capacity: 11 kg / 26 lbs.
Net Weight: Approx. 90 kg / 198 lbs.
Shipping Weight: Approx. 100 kg / 220 lbs.

Three-Phase Motor

Power: 0.55 kW / 0.75 HP
380/400V Maximum Consumption: 1.9A
220/230V Maximum Consumption: 3.3A

Single-Phase Motor

Power: 0.75 kW / 1 HP
220/230V Maximum Consumption: 6.2A

Single-phase 110V configurations are also available for applicable markets. Electrical configuration should be confirmed at time of order.

Dimensions

• Width: Approx. 19" / 47 cm

• Depth: Approx. 21" / 54 cm

• Overall Height: Approx. 49" / 124 cm

• Working Height: Approx. 45" / 115 cm

• Additional Dimension: Approx. 27" / 68 cm

Packaged Dimensions: Approx. 17" × 27" × 54" / 43 × 68 × 137 cm
Packaged Volume: Approx. 0.4 m³

Standard Equipment

The Talsa F14s includes three transparent filling horns/nozzles:

• 14 mm outside diameter

• 20 mm outside diameter

• 30 mm outside diameter

The machine also includes a stainless steel piston extraction wrench for easier removal and cleaning of the piston assembly.

Available Options

• Stainless steel filling horns/nozzles in multiple diameters and lengths

• Four-wheel configuration with two additional swivel casters

• Anti-tilt caster extensions with brakes

• Curved filling nozzle with anti-drip valve for filling cans

• Talsa PF500 Manual Portion Head

• Portioning approximately 20–500 grams

• Stainless steel locking nut with handle

• Single-phase electrical configurations

Other Available Talsa Hydraulic Fillers / Stuffers

Talsa offers additional hydraulic piston filler/stuffer models for processors requiring larger batch capacities while maintaining the same heavy-duty hydraulic filling concept.

The F14s is well suited for smaller batch production and operations where floor space is limited, while the F25s, F35s and F50s provide progressively larger capacities for higher-volume sausage and meat processing applications.

Contact RAM Equipment for help comparing Talsa filler sizes and selecting the best model based on your batch size, production volume and electrical requirements.

Request a Quote

Looking for a Talsa F14s hydraulic sausage stuffer for your meat processing operation? Contact RAM Equipment today to request a quote for pricing, availability, electrical configuration, freight, installation, training, service and parts. We appreciate the opportunity to help you select the right Talsa filler for your production requirements.
