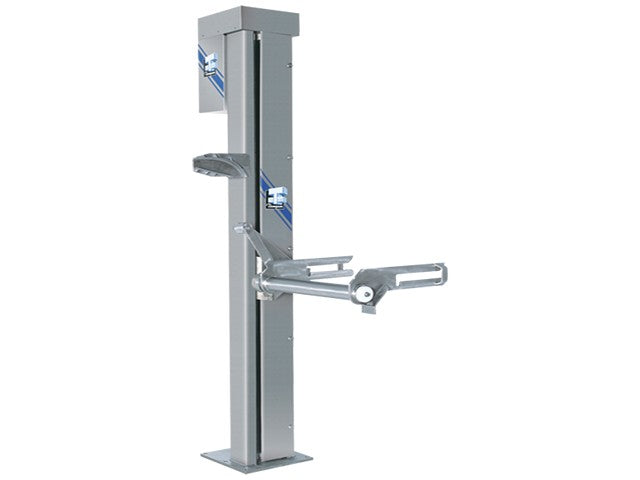

Thompson H200-M2-1 Buggy Lift and Dumper (LH Operation)

Thompson H200-M2-1 Buggy Lift and Dumper (LH Operation)

Enhance your meat processing efficiency with the Thompson Meat Machinery H200-M2-1 Buggy Lift and Dumper, featuring LH Operation for optimal usability. This high-performance equipment is meticulously engineered using premium #304 stainless steel, ensuring durability and compliance with Australian Standards and Regulations.

Key Features and Specifications:

  • Material Quality: Constructed from high-grade #304 stainless steel for maximum durability and hygiene.
  • Configuration: LH Operated design with the column on the left and lifting arms on the right, catering to specific operational needs.
  • Motor Efficiency: Equipped with a 0.75 kW brake gear motor, the H200-M2-1 combines energy efficiency with powerful performance.
  • Safety Mechanisms: Includes a robust safety brake, a 'bin lock' mechanism to secure the bin during operation, and a 'press and hold for operation' button for enhanced safety.
  • Base Stability: Features a 25" x 32" stainless steel base plate for secure anchoring to concrete floors.
  • Noise Reduction: The gearmotor drive operates quietly and smoothly, reducing operational noise.
  • Tipping Angle and Height: Offers a wide tipping angle of 130° for complete emptying of the bin, with adjustable tipping heights ranging from 1 meter to 3.9 meters.
  • Safety Cage Option: Available with an interlocked safety cage that allows for automatic running up to 20 inches off the floor, then switches to manual control for increased safety.
  • Applications: Versatile enough for various tipping tasks, from loading mixer mincers to filling machines and tumblers, or simply for efficient material handling and transfer.

Enhanced Operational Safety: The Thompson Meat Machinery H200-M2-1 Buggy Lift and Dumper is built with multiple safety features, ensuring secure and reliable operation even under demanding conditions. The design incorporates a strong wearing carriage with bronze bushes and a safety brake to prevent any accidental drops, making it one of the safest lifts on the market.

Applications and Usability: Ideal for a wide range of applications within the meat processing industry, this buggy lift and dumper simplifies material handling, enhances operational efficiency, and supports the loading of various types of processing equipment.

Support and Services: RAM Manufacturing Equipment in Corona, California, provides comprehensive support including training, installation, service, and parts for the Thompson Meat Machinery H200-M2-1 Buggy Lift and Dumper and other equipment.

Contact Us: For more information on how the Thompson Meat Machinery H200-M2-1 can revolutionize your operations, or to request a demo, contact us today at:

  • Phone: 951-734-8152
  • Address: 235 Benjamin Dr. Suite 102, Corona, CA 92879
  • Email: info@ramaxwell.com

Invest in the Thompson Meat Machinery H200-M2-1 Buggy Lift and Dumper for a reliable, safe, and efficient addition to your meat processing facilities

Specifications

Model Standard Loading Hoist 3200 Loading Hoist 3400 Loading Hoist 3700 Loading Hoist 3950 Loading Hoist
Hoist Height (B) (mm) 115" 135" 145" 156" 167"
Minimum Loading Height (D) (mm) 60" 80" 80" 103" 113"
Maximum Loading Height (C) (mm) 80" 89" 99" 113" 122"
Ceiling Height Minimum (A) (mm) 128" 138" 147" 161" 169"
Lifting Capacity (kg 441 lbs. 441 lbs 441 lbs 440 lbs. 440 lbs
Motor(kW) .75 .75 .75 .75 .75
*Power Supply (Amps) 10 10 10 10 10
Full Load Current(Amps) 5 5 5 5 5
Ship Size (cm) L x W x H 13"L x 4"W x 14" H 15"L x 4"W x 4" H 15"L x 4"W x 4" H 17" L x 4" W x4" H 18" L x 4' W x 4" H
Ship Weight (kg) 1433 1700 lbs 1800 lbs. 1930 lbs 2000 lbs
