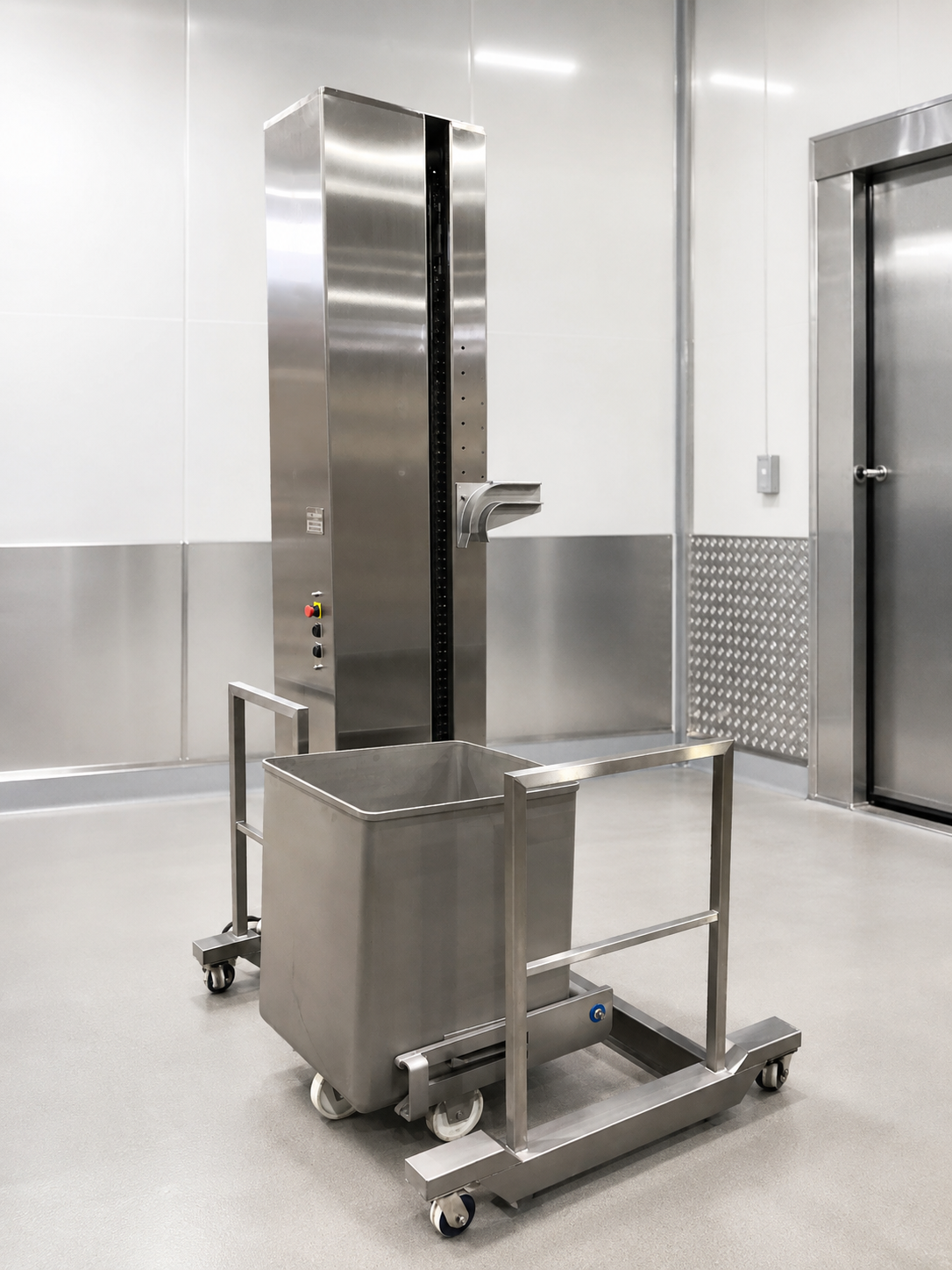

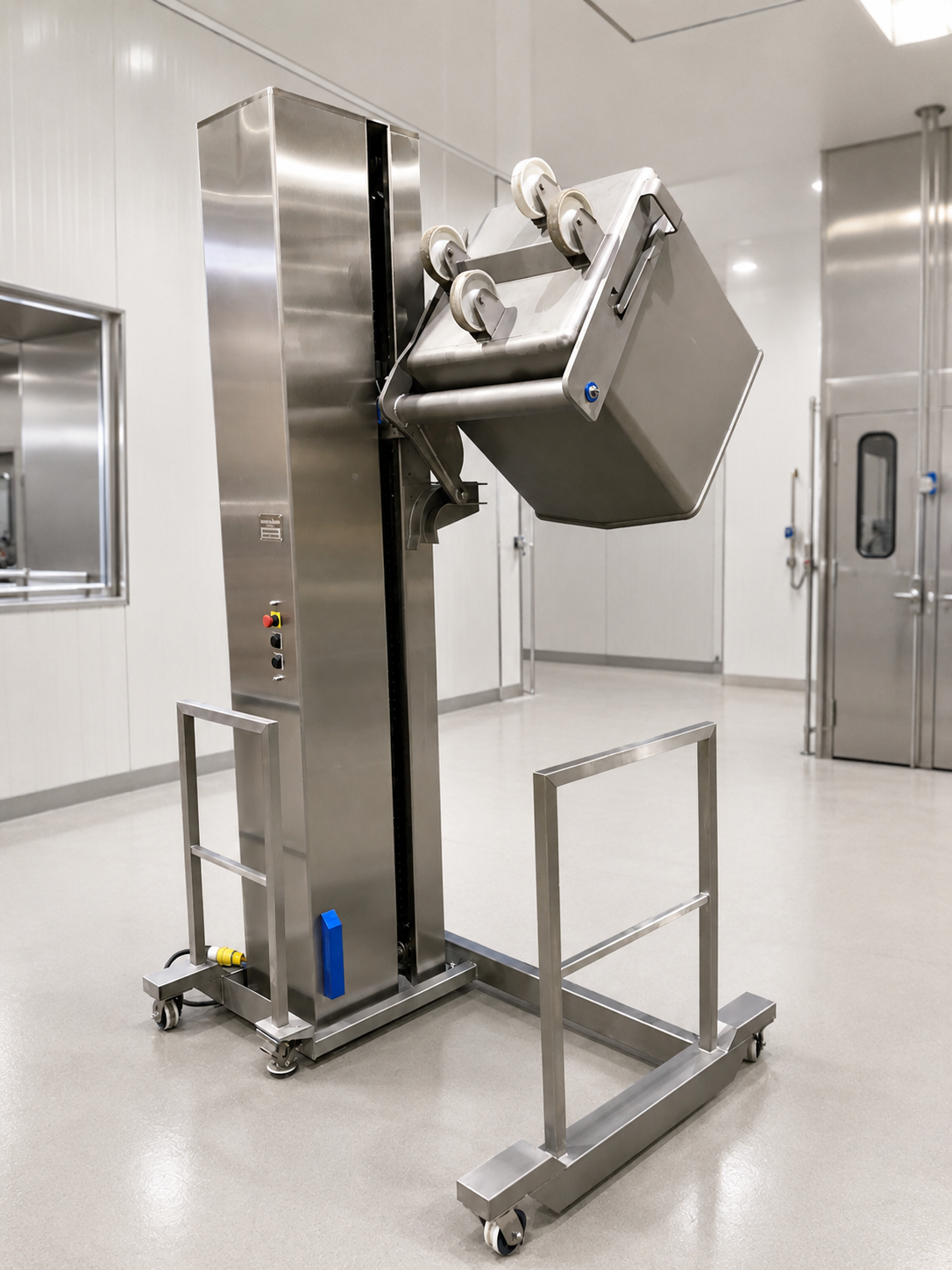

RAM 10' Buggy Lift / Column Dumper – 1,000 lb Capacity

The New RAM 10' Buggy Lift, also known as a Column Dumper or Post Dumper, is a heavy-duty stainless steel material handling solution designed to safely lift and discharge product from processing buggies into grinders, mixers, hoppers, conveyors, and other industrial food processing equipment. With a 1,000 lb lifting capacity, adjustable dump height, and variable discharge angle up to 45°, the 10' Column Dumper provides efficient, repeatable product transfer while reducing manual handling.

Built for demanding food processing environments, the RAM Column Dumper features T-304 stainless steel construction, a high-efficiency 1 HP drive, heavy-duty No. 100 lifting chain, automatic cart-lock and chain-break safety systems, and stainless steel controls. The 10' model provides dump heights up to 96.5" with a 400 lb buggy and requires a minimum ceiling height of 136".

Specifications

• Column Height: 10 ft
• Capacity: 1,000 lbs
• 400 lb Buggy Dump Height: 78.5"–96.5"
• 600 lb Buggy Dump Height: 72.875"–90.875"
• Minimum Ceiling Height: 136"
• Drive: 1 HP high-efficiency/output drive
• Discharge Angle: Variable up to 45° above horizontal
• Lifting Chain: Nickel-plated No. 100 chain
• Vertical Shaft: Hard chrome plated
• Construction: T-304 stainless steel internal lifting assembly, buggy carriage, sprocket shafts, sprockets, and cabinet
• Safety: Automatic cart lock and chain-break safety systems
• Controls: UL-listed stainless steel internal control panel with Allen-Bradley contactor, Up/Down controls, and emergency stop
• Electrical: 230 or 460V, 3 Phase, 60 Hz

Available Options

• Programmable controller for custom equipment synchronization
• Warning lights and safety horn
• Custom carriage assemblies for drums, barrels, or specialty containers
• Custom discharge chutes
• Portable caddy with swivel casters and floor brake
• Left-hand or right-hand configurations

Ideal for meat, poultry, food processing, and other sanitary production facilities, the RAM 10' Buggy Lift provides a durable solution for transferring bulk product between processing steps.

Need a 10' Column Dumper for your production line? Contact RAM Equipment today for a quote and help configuring the correct buggy, dump height, carriage, and discharge setup for your application.
