Part #DMDA2506 - Bridge Rectifier 1 Phase Full Wave 600 Volt, 25 AMP 25A BR-3Q

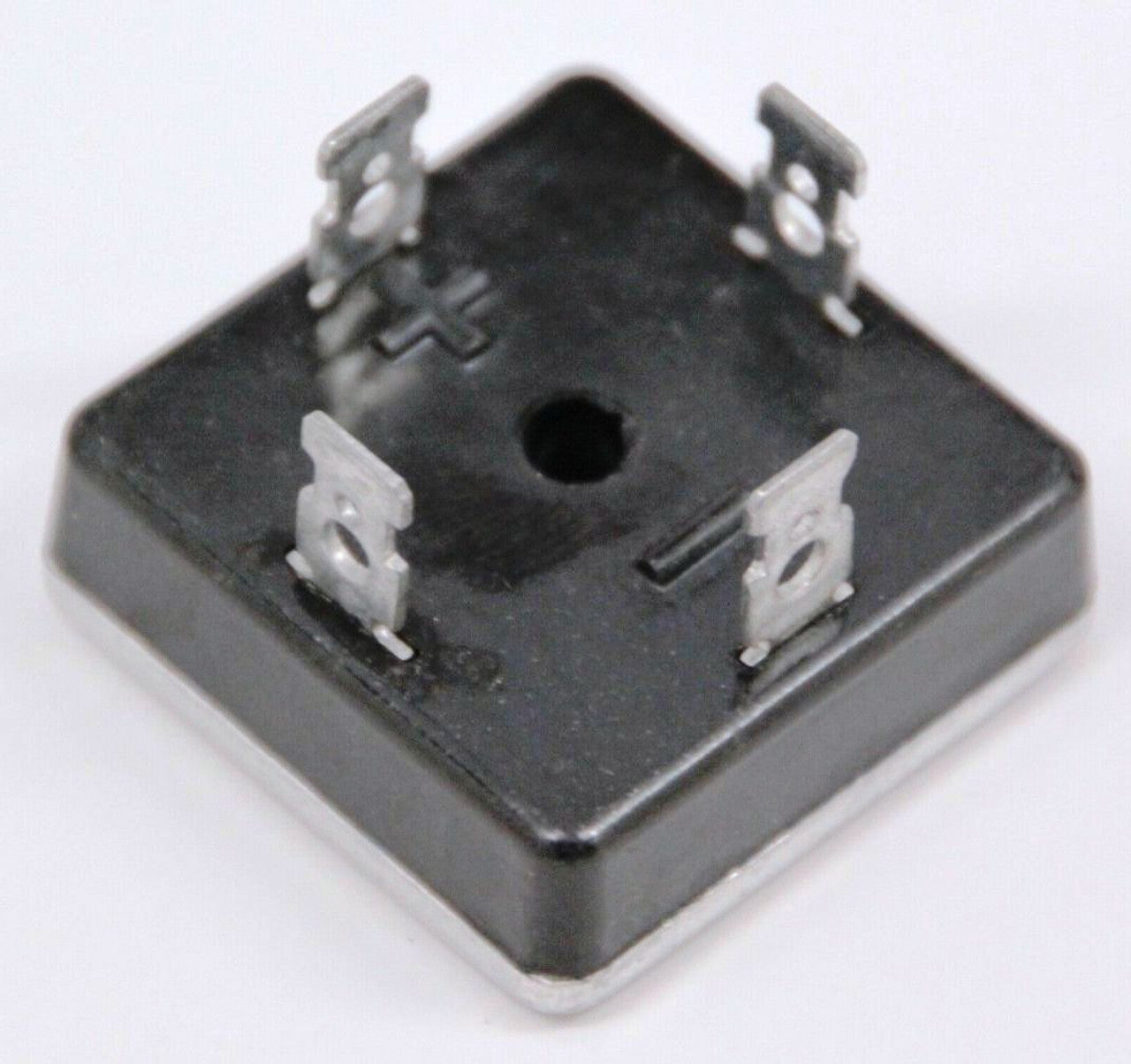

Motorola MDA2506 Bridge Rectifier – 600V, 25A, 1-Phase Full-Wave

The Motorola MDA2506 is a robust 1-phase full-wave bridge rectifier designed for high-current applications. With a maximum repetitive peak reverse voltage of 600V and a continuous forward current of 25A, this rectifier is ideal for converting AC to DC in various power supply systems.

Key Features:

• High Voltage Handling: Capable of withstanding up to 600V repetitive peak reverse voltage.

• High Current Capacity: Delivers a continuous forward current of 25A, suitable for demanding applications.

• Compact Design: Features a 4-pin BR-3Q package for efficient space utilization.

• Reliable Performance: Manufactured by Motorola, ensuring quality and durability.

Specifications:

• Maximum Repetitive Peak Reverse Voltage (V_RRM): 600V

• Maximum RMS Voltage (V_RMS): 420V

• Maximum DC Blocking Voltage (V_DC): 600V

• Maximum Average Forward Rectified Current (I_O): 25A

• Peak Forward Surge Current (I_FSM): 400A

• Package Type: BR-3Q

Applications:

Ideal for use in:

• Power supply units

• Motor controls

• Battery chargers

• Welding equipment

• Industrial automation systems

Condition:

This item is listed as "New – Open box," indicating that it is in excellent, unused condition but may not come in its original packaging.
