Part #D-M9P - Solid state sensor, Direct mount, Wire Leads, D-M9 Series

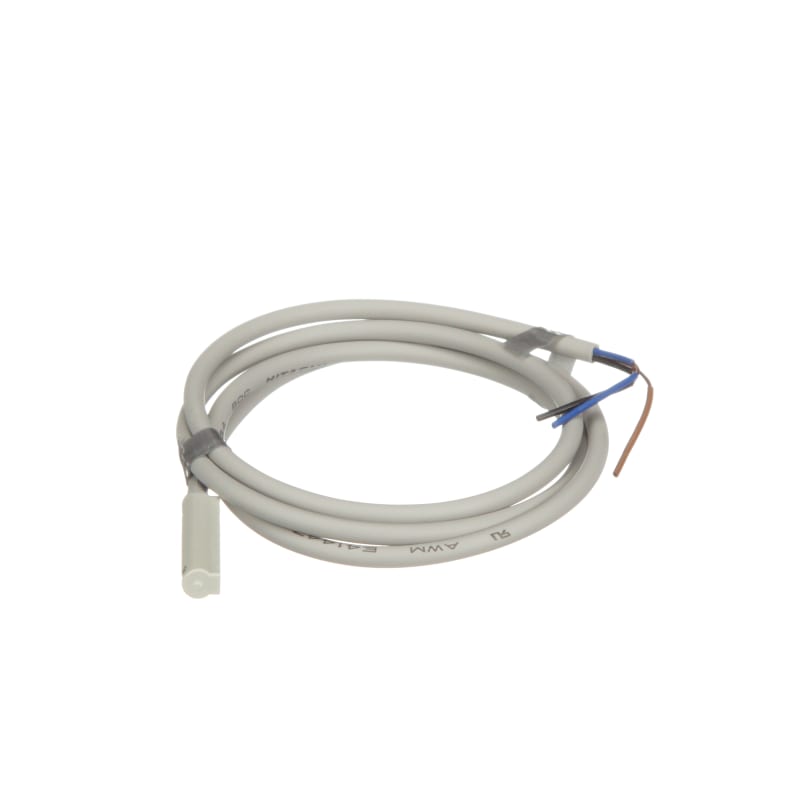

D-M9P Solid State Auto Switch – PNP Output, 3-Wire, In-Line Mount

Enhance the precision and reliability of your pneumatic systems with the D-M9P Solid State Auto Switch. Designed for direct mounting on actuators, this compact sensor provides accurate position detection, making it ideal for integration with PLCs, relays, and IC circuits in various industrial applications.

Key Features:

• Output Type: PNP (sourcing)

• Wiring Configuration: 3-wire

• Operating Voltage Range: 4.5 to 28 VDC

• Maximum Load Current: 40 mA

• Current Consumption: 10 mA or less

• Internal Voltage Drop: 0.8 V or less at 10 mA (2 V or less at 40 mA)

• Leakage Current: 100 µA or less at 24 VDC

• Indicator Light: Red LED illuminates when the switch is ON

• Mounting Style: Direct (in-line)

• Lead Wire Length: 0.5 meters (standard)

• Cable Type: Oil-resistant heavy-duty vinyl, 3 cores (Brown/Blue/Black), ø2.7 x 3.2 mm elliptical

• Weight: Approximately 8 grams

• Certifications: CE marking, RoHS compliant

The D-M9P is suitable for a wide range of applications, including:

• Position sensing in pneumatic cylinders

• Integration with programmable logic controllers (PLCs)

• Automation systems requiring precise position feedback

• Industrial machinery and equipment

Ordering Information:

• Model Number: D-M9P

• Availability: In stock and ready to ship

Ensure the reliability and efficiency of your automation systems with the SMC D-M9P Solid State Auto Switch. Order now to take advantage of our competitive pricing and prompt delivery.
