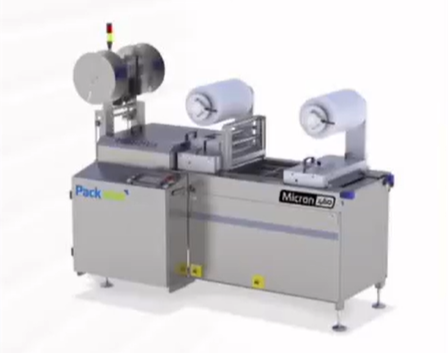

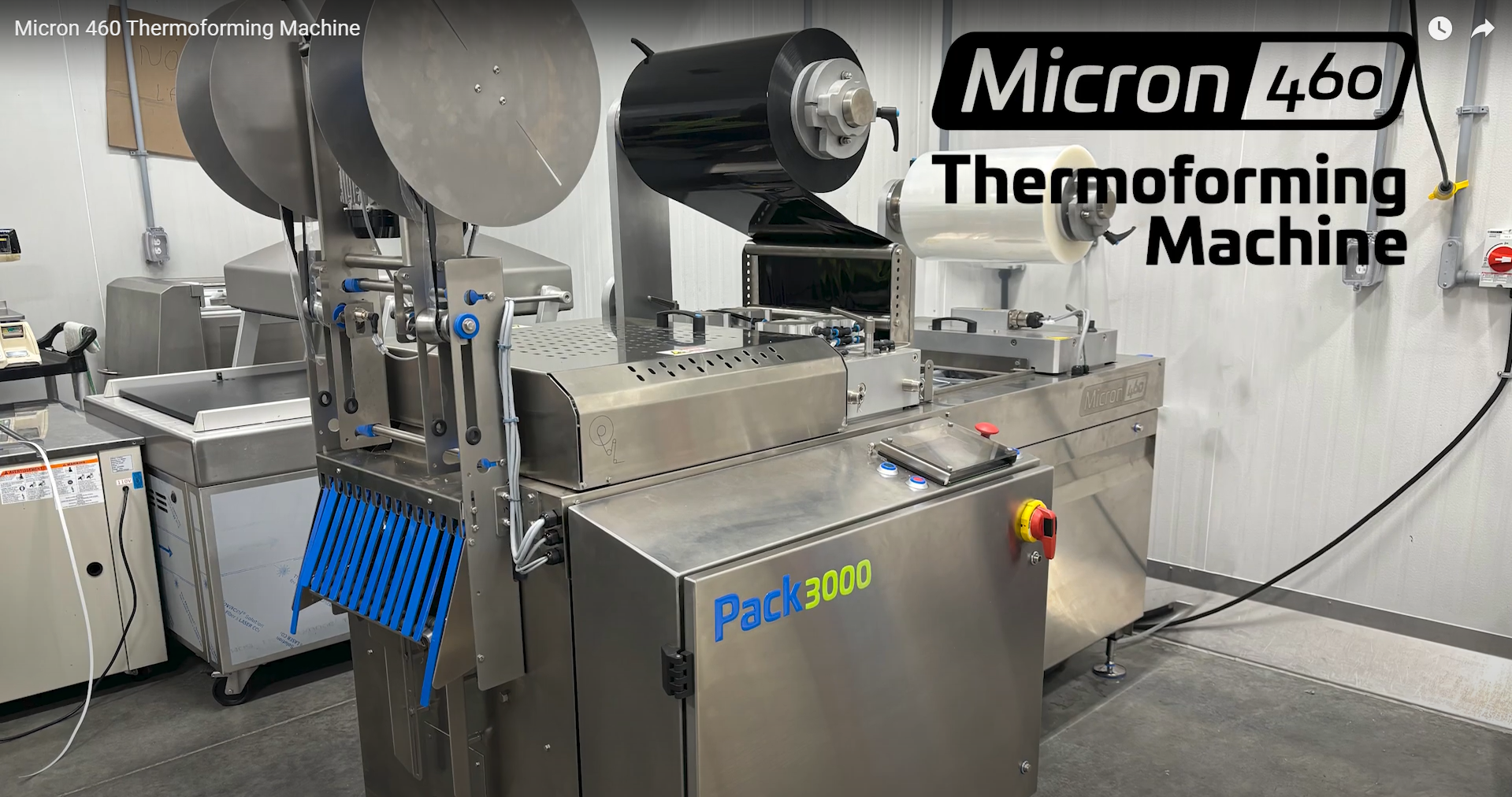

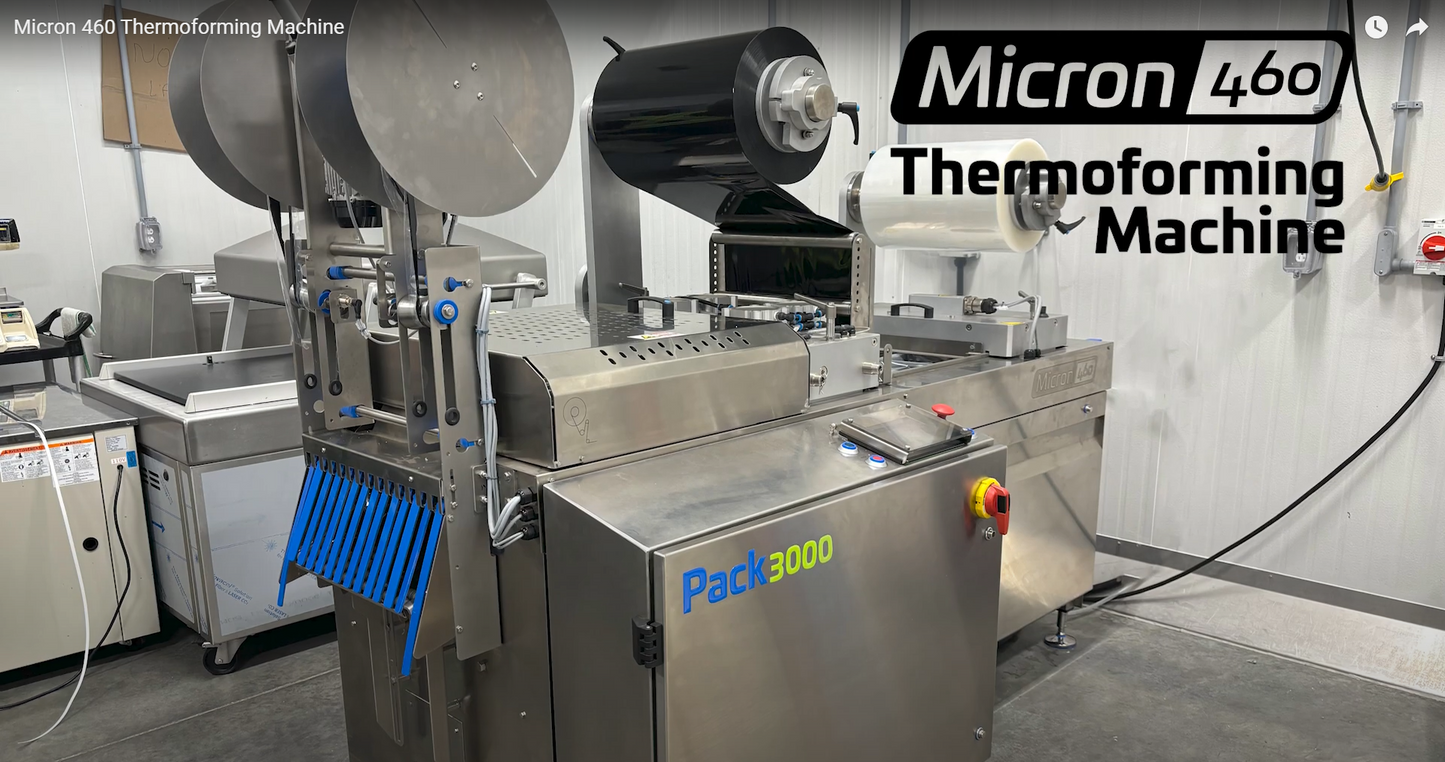

Micron 460 Thermoforming Rollstock Machine - Pack3000

The Pack3000 Micron 460 is the most compact thermoforming rollstock machine on the market, designed to maximize efficiency while minimizing footprint. At just 7.7 ft in length and 4.5 ft wide, the Micron 460 is perfect for processors with limited floor space who still require the flexibility, reliability, and performance of a full-scale rollstock thermoformer.

Compact Yet Powerful

Despite its ultra-compact design, the Micron 460 delivers high-performance packaging with speeds of up to 5 cycles per minute. Its stainless steel frame is built for durability, full wash-down environments, and long-term reliability. With a maximum draw depth of 125 mm (5 inches) and a film width of 460 mm, it supports a wide range of package sizes and formats.

Versatile Packaging Applications

The Micron 460 is designed for multiple packaging formats, making it suitable for food, medical, and industrial applications.

• Flexible film vacuum packaging

• Rigid film applications

• MAP (Modified Atmosphere Packaging) with gas flush

• Skin packaging, including below-tray-line sealing for retail-ready presentation

User-Friendly Design & Fast Changeovers

• Sliding die top and seal frames allow for quick tool changes and reduced downtime.

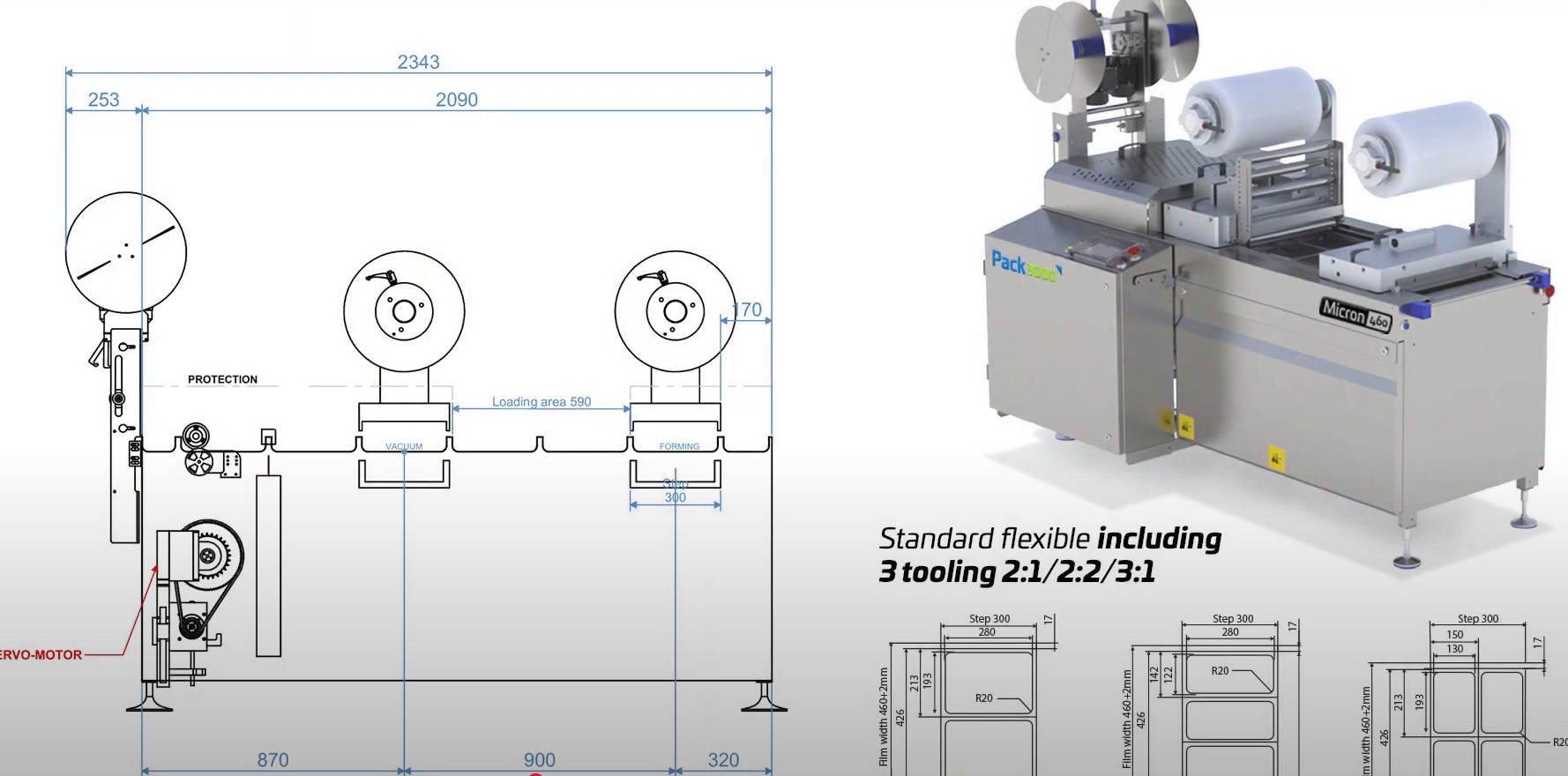

• Multiple die configurations (2:1, 2:2, 3:1) support different product sizes and layouts.

• Rotary and guillotine cutting system provides clean, consistent cuts.

• Film tension system ensures accuracy and reduces waste.

• Printed film registration option available for branded films.

Performance & Reliability

• Servo-driven motor for precise forming and sealing cycles

• Busch vacuum pump (100 m³) included for dependable vacuum performance

• CSA–ULC certified electrical cabinet with all front access for easy servicing

• Anti-condensation cabinet for improved performance in wash-down environments

• Standard trim wind-up system for scrap handling

Smart Features & Controls

• Schneider PLC with touchscreen HMI for intuitive operation

• Remote access capability for diagnostics and support

• ½ index option for flexible production requirements

• Integral seal gaskets on seal frames ensure consistent sealing quality

Utilities & Requirements

• Electrical: 230V, 60Hz, 40A, 17.7 kW, 3P+PE

• Compressed Air: 6 bar, 950 L/min max flow (dry air)

• Water Cooling: 0.2 L/min (¼” in/out connections)

✅ Why Choose the Micron 460?

• Smallest thermoformer available – only 7.7 ft long

• Handles flexible, rigid, MAP, and skin packaging

• Fast configuration changes with sliding die system

• Up to 5 cycles per minute with a 460 mm film width

• Compact, efficient, and Industry 4.0 ready

• Busch vacuum technology for reliable performance

• Built to North American standards (CSA–ULC)

• Backed by Pack3000 service and support across North America

The Pack3000 Micron 460 is the ideal thermoforming solution for processors needing maximum packaging performance in the smallest possible footprint. It combines affordability, versatility, and ease of use, making it the perfect entry-level or space-saving rollstock machine for food and non-food industries alike.
