MHS Scheidetechnik

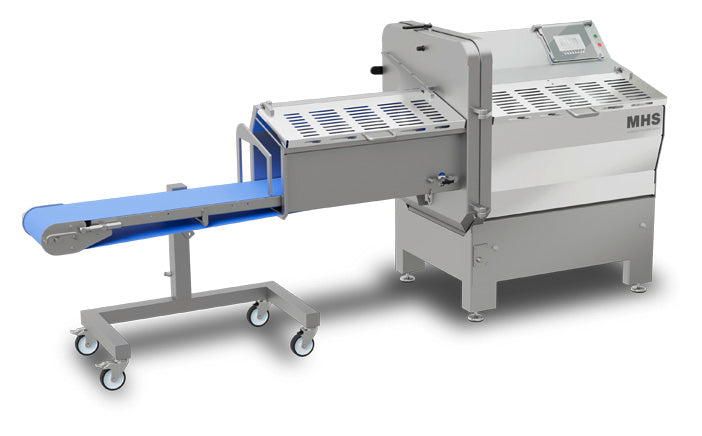

MHS Model IC 70-30 Horizontal Meat Slicer with Outfeed Conveyor

MHS Model IC 70-30 Horizontal Meat Slicer with Outfeed Conveyor

The MHS Model IC 70-30 Horizontal Meat Slicer with Outfeed Conveyor features all # 304 stainless steel construction. The removable parts are utilized to make slicing and portioning machines easy to clean, sanitize and maintain. The MHS Model IC 70-30 Horizontal Meat Slicer with Outfeed Conveyor offers options such as double blades, take-away conveyors and programmable slicing parameters to allow the machine to be configured to meet your specific needs. Contact RAM Manufacturing Equipment so we can educate you or your staff today on the capabilities of the different products and processes that our horizontal Meat Slicer and portioning machines can be used for as well as help you purchase the right model with the proper options to meet your specific needs.

We have sold the MHS Model IC 70-30 Horizontal Meat Slicer with Outfeed Conveyor to companies slicing beef products such as beef jerky, bacon, Korean BBQ meats, pet food and pet treats, salami and other hard deli meats, cheese steak, thin sliced Milanese, boneless ribeye and New York Strips.

The MHS Model IC 70-30 Horizontal Meat Slicer with Outfeed Conveyor is also used to slice bone-in porkchops and boneless pork products. As well as poultry such as chicken breast and thigh meat.

If you want to purchase one of the best horizontal slicers and portion control machines on the world market, contact us about our MHS Model IC 70-30 Horizontal Meat Slicer with Outfeed Conveyor. When you purchase a horizontal slicer from RAM Manufacturing Equipment, we will provide training on safety, maintenance, cleaning and how to operate the MHS Model IC 70-30 Horizontal Meat Slicer with Outfeed Conveyor.

RAM Manufacturing Equipment located in Corona, California, offers training, installation, service and parts for all the machines we sell. Including the MHS Model IC 70-30 Horizontal Meat Slicer with Outfeed Conveyor machine and many others. Call or visit us today for more information!

Call or Visit at:
951-734-8152
235 Benjamin Dr. Suite 102
Corona, CA 92879

Find this machine and many others at our alternative website link below:
https://ramaxwell.com/products/model-ic-70-30-horizontal-meat-slicer-with-outfeed-conveyor

Features

  • Up to 720 slices/minute
  • Automatic start up and searching
  • Shorter cycles thanks to automatic return limiter
  • Distribution on remaining slice
  • High levels of accuracy even with products containing bones, thanks to MHS microtoothing
  • Exact feed due to less friction on structural surfaces
  • Forward feed selectable, continuous or step by step
  • Optimum hold due to adjustable gripper
  • Single cut function with higher speed of blade to increase slice quality on low production rate
  • Diversification of machines in product cross section and product length
  • Integration into the production process by cutting into groups

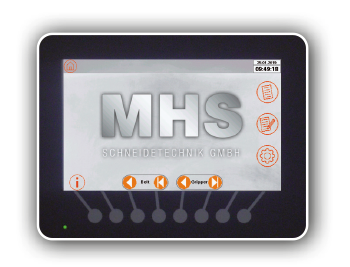

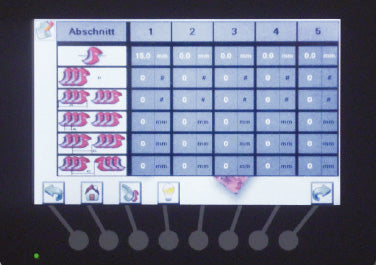

  • Comfortable operation via integrated touch-display
  • 100 storable programs
  • Highest safety level
  • Even distribution of products by number
  • Slicing software
  • Software update and data backup via USB stick

Optional Features

  • Automatic start after closing flap (optionally available)
  • Automatic input flap opener (optionally available)
  • Pneumatic gripper (optionally available)
  • Extendable conveyor belt available in different length (optionally available)
  • Shingling and separation of products in conjunction with a conveyor belt (optionally available)
  • Stainless steel flaps (optionally available)
  • Water nozzles for blade cleaning during the cut (optionally available)

Specifications

Model MHS IC 70-30
Max. input length mm 760
Cross section mm (W x H) 300 x 150
Outer dimensions mm (L x W x H) (L with belt) 1950 x 1035 x 1385 (3010)
Connection (other voltages on request) 7.7 kW (7.8 kW)
Weight kg 420 (482)
Single blade performance slices/minute 360
Double blade performance slices/minute (continuous) -
Slice thickness mm 0.5 – 500
Voltage 230 / 460 V / 3ph
